Order Your Custom Grill Grates
Use our Measurement Guide to help us create the perfect, replacement stainless steel grill grate for you.
Do you know exactly what you need?
If so, proceed to Step #1.
Do you have an idea of what you want but are not quite sure? Take a look at our standard options below for some options and ideas.
Curious to know what others have ordered from us in the past? Check our previous customer orders. If you see something that will work perfectly for you, skip the quoting process, and add it straight to your shopping cart to order now!
Step #1 – Measure Width and Depth
Tips For Measuring Width:
-
Width is measured from side to side.
-
Take measurements in a minimum of 3 places (the grill may bow out or in).
-
Measure from the edge of the grill to the opposite edge.
-
Make sure the number you submit will fit inside the grill by rounding down to the nearest 1/4", 1/2", 3/4", or full inch. There is no need to round down if your number falls on one of these dimensions.
-
Input your dimension in the width field below.
Tips For Measuring Depth:
-
Depth is measured from front to back. This will be the bar length.
-
Take measurements in at least 3 places (the grill may bow out or in).
-
Measure from the edge of the grill to the opposite edge.
-
Make sure the number you submit will fit inside the grill by rounding down to the nearest 1/4", 1/2", 3/4", or full inch. There is no need to round down if your number falls on one of these dimensions.
-
Input your dimension in the depth field below.
Step #2 – Stabilizer Bar
Tips For The Stabilizer Bar:
-
If your grill grate depth is 18" or greater, you need a stabilizer bar.
-
Our larger grill grates have a stabilizer bar welded underneath the grilling bars for added strength.
-
It is attached below the grilling bars and sits below the grate.
-

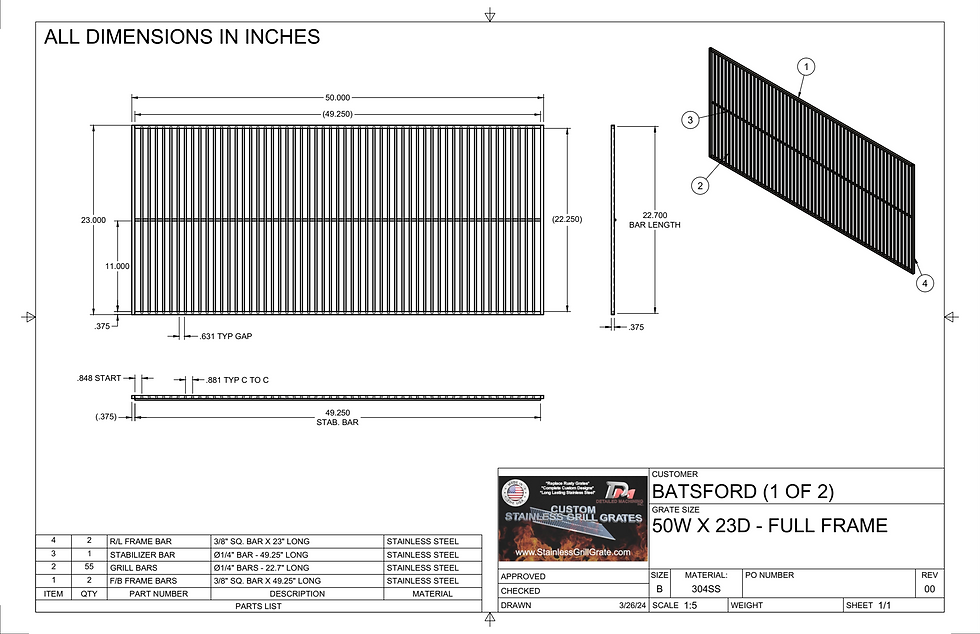

If your grill has supports on the sides, as in the diagram, we will need to shorten the stabilizer bar so the grate does not rock like a see-saw. We will need to know the dimension "X" in the top-right drawing of the first picture in the picture gallery.
-
If your grill grate only has support in the front and back, as depicted in the bottom-right drawing of the picture, we can leave the stabilizer full length.
Step #3 – Place Your Order
If you know exactly what you want and are ready to order, fill out the form, provide us with the information needed, and submit it. Our team will email you back shortly after receiving your order with a link to review it and ask for final approval. Then, we'll create your new grill grate and deliver ASAP!
Step #3 – Get a Quote
If our standard grill grates options don't work for you, or if you're not sure what you need, fill out the form to tell us exactly what you're looking for, submit it, and our team will email you back shortly after receiving your request with either more questions to further understand your needs, or a print of your new grill to make sure everything is just right. Once the print is approved you will then receive a quote, if you like what you see. You will get an email with a link to review your order and get your new grill grate ASAP!
Standard Options
